Grafana

Grafana is a popular open source data visualization and monitoring tool used to display time series data from various sources.

It provides a flexible platform to create alerts and dashboards that can be used to monitor the performance of various systems, applications and infrastructure.

How to integrate Grafana?

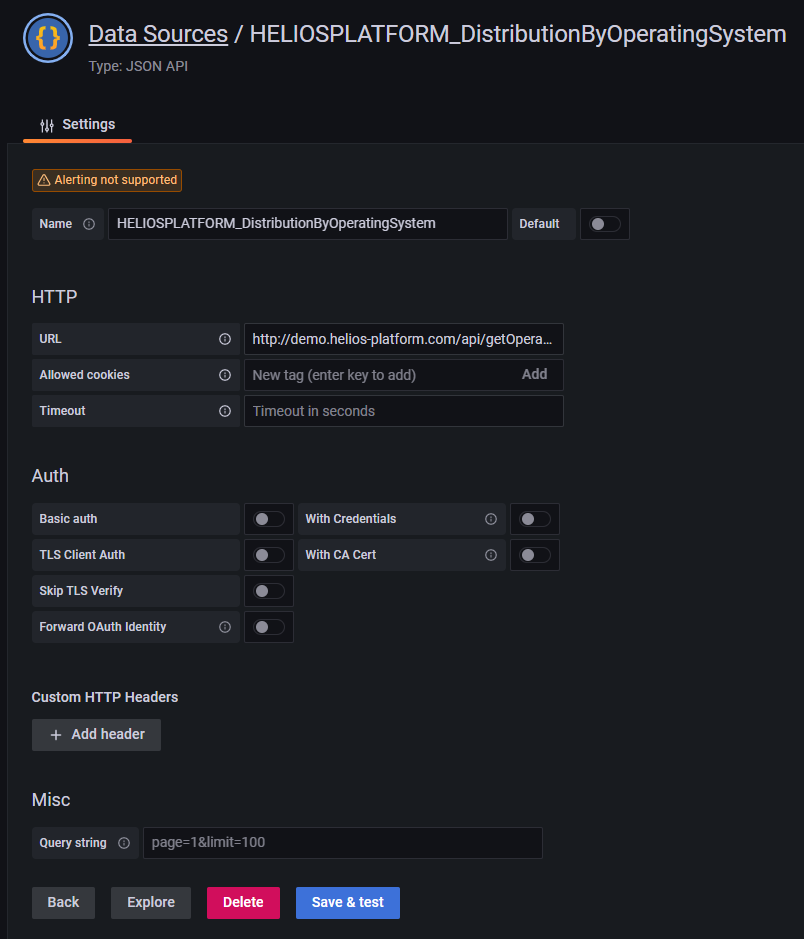

Step 1: You must create a datasource for each link.

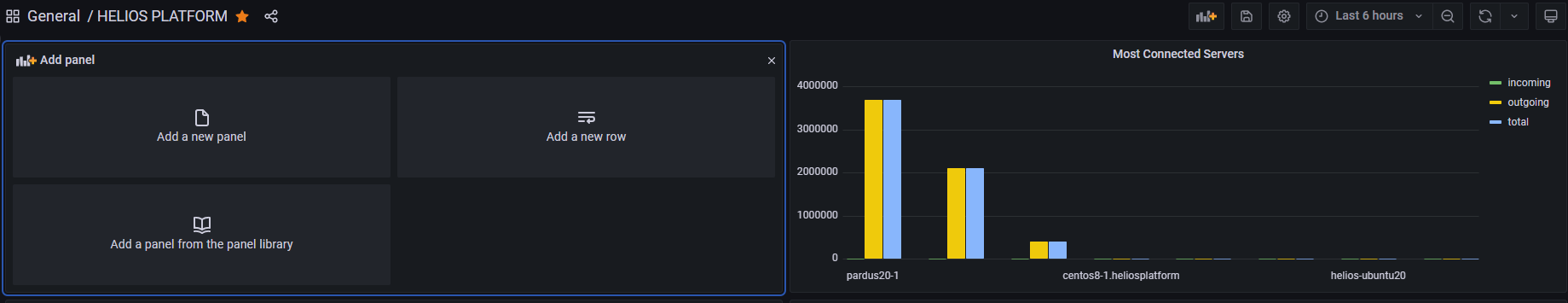

Step 2: Click the add panel button in the upper right corner of the dashboard and click the Add a new panel button from the widget that opens.

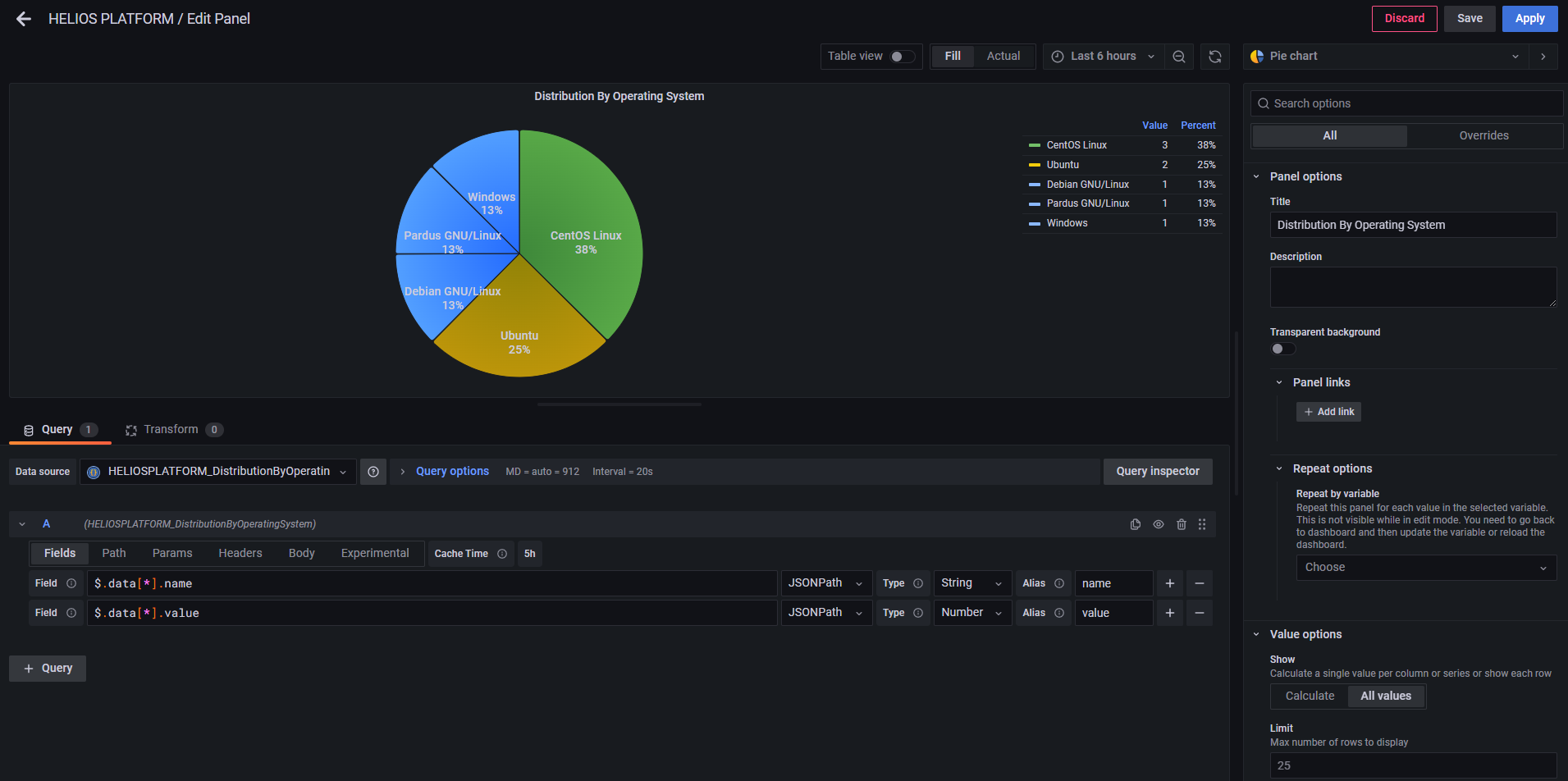

Step 3: On the page that opens, the datasource you created from the datasource section is selected, the data to be displayed in the field section is entered. Finally, the specified card type is selected from the card types in the upper right corner and the process is completed by clicking the save button.

Distribution By Operating System

Desription	Contains statistical data of operating system distributions
Api URL	http://<ip>:9739/api/getOperatingSystemDistrubition
Chart Type	Pie or Donut

Data Types

{
    data: [
        {
            name: "string",
            value: "integer"
        }
    ],
    timestamp: "string"
}

Sample Output

{
     data: [
            {
                name: "CentOS Linux",
                value: 3
            },
            {
                name: "Ubuntu Linux",
                value: 1
            },
            {
                name: "Pardus GNU/Linux",
                value: 1
            },
            {
                name: "Windows",
                value: 1
            }
            ],
    timestamp: "18-01-2023 16:13:24"
}

Most Connected Servers

Desription	It contains the information of the 10 most connected servers.
Api URL	http://<ip>:9739/api/getMostConnectedServers
Chart Type	Bar

Data Types

{
    data: [
    {
        name: "string",
        incoming: "integer",
        outgoing: "integer",
        total: "integer"
    }
    ],
    timestamp: "string"
}

Sample Output

{
     data: [
            {
                name: "pardus20-1",
                incoming: 13,
                outgoing: 2608497,
                total: 2608510
            },
            {
                name: WIN-AA00UOQURFU",
                incoming: 7,
                outgoing: 2101246,
                total: 2101253
            },
            {
                name: "centos8-1.heliosplatform",
                incoming: 15,
                outgoing: 2956,
                total: 2971
            },
            {
                name: "ubuntu20-1.heliosplatform",
                incoming: 33,
                outgoing: 803,
                total: 836
            }
            ],
    timestamp: "18-01-2023 16:13:24"
}

Most Listen Ports

Desription	It contains the information of the 10 most listen ports.
Api URL	http://<ip>:9739/api/getMostListenPort
Chart Type	Stat

Data Types

{
    data: [
    {
        name: "string",
        value: "integer"
    }
    ],
    timestamp: "string"
}

Sample Output

{
    data: [
            {
                name: "22",
                value: 7
            },
            {
                name: "80",
                value: 6
            },
            {
                name: "25",
                value: 3
            },
            {
                name: "21",
                value:  2
            },
            {
                name: "3306",
                value: 2
            }
            ],
    timestamp: "18-01-2023 16:13:24"
}

Most Connection Latency

Desription	It contains the information of the 10 High Latency.
Api URL	http://<ip>:9739/api/getMostLatency
Chart Type	Table

Data Types

{
    data: [
    {
        localaddress: "string",
        remoteaddress: "string",
        port: "string",
        direction: "string",
        itemTotal: "integer"
    }
    ],
    timestamp: "string"
}

Sample Output

 {
     data: [
            {
                localaddress: "10.41.201.20",
                remoteaddress: "185.125.188.54",
                port: "443",
                direction: "out",
                itemTotal: 78376.02
            },
            {
                localaddress: "10.41.201.21",
                remoteaddress: "185.125.188.59",
                port: "443",
                direction: "out",
                itemTotal: 66631.5156
            }
            ],
    timestamp: "18-01-2023 16:13:24"
}

Most Connection Duration

Desription	It contains the information of the 10 High Duration.
Api URL	http://<ip>:9739/api/getMostLDuration
Chart Type	Table

Data Types

{
    data: [
            {
                localaddress: "string",
                remoteaddress: "string",
                port: "string",
                direction: "string",
                itemTotal: "integer"
            }
            ],
            timestamp: "string"
}

Sample Output

  {
     data: [
            {
                localaddress: "10.41.201.20",
                remoteaddress: "185.125.188.54",
                port: "443",
                direction: "out",
                itemTotal: 78376.02
            },
            {
                localaddress: "10.41.201.21",
                remoteaddress: "185.125.188.59",
                port: "443",
                direction: "out",
                itemTotal: 66631.5156
            }
            ],
     timestamp: "18-01-2023 16:13:24"
    }

Most Connection Traffic

Desription	It contains the information of the 10 High Traffic.
Api URL	http://<ip>:9739/api/getMostTraffic
Chart Type	Table

Data Types

{
    data: [
        {
            localaddress: "string",
            remoteaddress: "string",
            rxCount: "integer",
            txCount: "integer",
            rxtxTotal: "integer",
            conCount: "integer"
        }
    ],
    timestamp: "string"
}

Sample Output

{
     data: [
            {
                localaddress: "10.41.201.20",
                remoteaddress: "10.41.201.23",
                rxCount: 407659,
                txCount: 21623,
                rxtxTotal: 429282,
                conCount: 14
            },
            {
                localaddress: "10.41.201.20",
                remoteaddress: "10.41.201.22",
                rxCount: 399896,
                txCount: 156,
                rxtxTotal: 400052,
                conCount: 4
            }
            ],
     timestamp: "18-01-2023 16:13:24"
}
